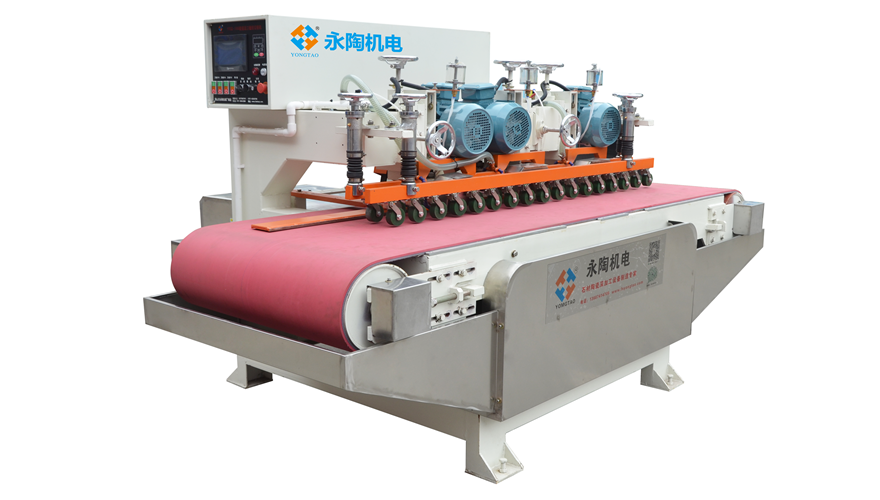

YTQZ-A/3-1200 Three Blade CNC Ceramic Tile Cutter Machine
Yongtao’s 3-blade CNC tile cutter machine features adjustable size and precise CNC control, with a maximum cutting width of 1200mm. It delivers efficient, flawless cuts with consistent dimensions and zero error.
Product introduction
Description of YTQZ-A/3-1200 Three Blade CNC Ceramic Tile Cutter Machine
YTQZ-A/3-1200 Three Blade CNC Ceramic Tile Cutter Machine is an new CNC tile cutting machine,which was researched and developed by our company. It is an outstanding cutting machine in tile processing,which successfully eliminates the cracking. And it is a professional tile cutter. This machine owns the following advantages:
CNC Tile Cutting Machine:
Features of YTQZ-A/3-1200 Three Blade CNC Ceramic Tile Cutter Machine
(1) The cutting size can be numerical controlled, and the accuracy reaches 0.1mm.
(2) The two cutting discs integrate the pre-cutting and cutting-off. The cracks and unevenness can be reduced much.
(3) Low breakage rate, stable function, saving energy and reducing cost. High speed, and excellent performance.
(4) automatic monitoring of failures, and convenient repair.
YTQZ-A/3-1200 Three Blade CNC Ceramic Tile Cutter Machine will certainly bring you high-class products and perfect economic benefit.
Parameter of YTQZ-A/3-1200 Three Blade CNC Ceramic Tile Cutter Machine
We have professional tile cutter for sale and we provide you with best professional tile cutter for you.
Machine specifications
| Nos. Of cutting head | 2pc |
|---|---|
| Nos. Of chamer head | 1pc |
| Width of conveyor belt | 1020mm |
| Dia. Of blade | Φ110-150mm*20mm |
| Main motor power | 4kw |
| Conveyor motor | 1.1kw |
| Speed of conveyor | 1-5.0m/min |
| Cutting width | 20-1200mm |
| Max half-and-half cutting width | 1200x1200mm (two pcs of 600x1200) |
| Max. Cutting thickness | 20mm |
| Total power | 13.1kw |
| Size of machine | 2.7*2.0*1.8m |
| Weight | About 1500kg |
| Water consumption | 300L/min |
Technical data reflects the legacy product record. Confirm voltage, options and final configuration with the approved quotation.
Bring the material. We’ll plan the process.
Send your material, maximum dimensions and production target. We will help you confirm the suitable machine configuration.
